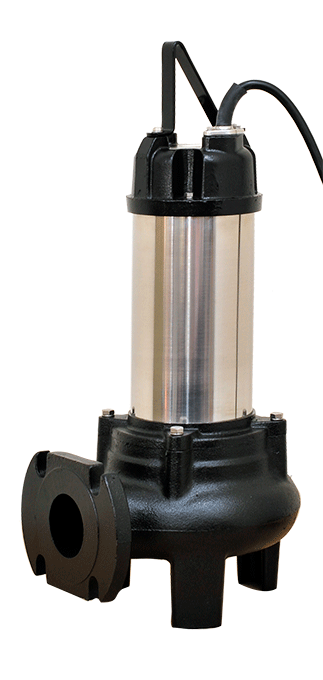

MPW 200 Mighty Pump

Sewage/Wastewater Mighty Pumps™ have a recessed vortex impeller which make them capable of handling 2 inch solids for clog free performance

Pump Features

  • Sewage/Wastewater Mighty Pumps™ have a recessed vortex impeller which make them capable of handling 2 inch solids for clog free performance
  • Stainless steel motor housing
  • Burgmann Type Silicon Carbide Double Mechanical Seals assure longest operational life of any seals available
  • Water tight cable gland with epoxy potting to prevent capillary wicking
  • Double shielded, single row, high temperature, long life C3 bearings. Rated for 60,000 hours
  • Electrical overload and thermal overload protection
  • Immersion depth up to 35 ft, and a maximum operating temperature of 104°F
  • Maximum starts per hour: 15
  • 1 year warranty. Approved by CSA, UL, UL ©
  • Optional automatic controls

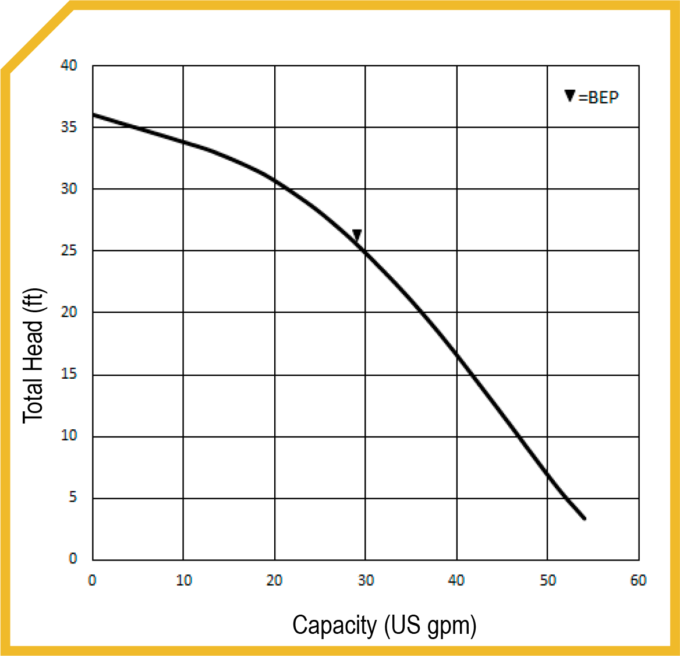

Performance

Pump Type

Electric Submersible Pump

Model

MPW 200 Mighty Pump

Maximum Flow

168 US gpm (636 L/min)

Shutoff Head

56 ft (17.1 m)

Solids Handling

2 inches (51 mm) Diameter

BEP with 15' Lift

N/A

Technical Specs

Horsepower

2.0 hp

Maximum Operating Speed

3,450 RPM

Impeller Type

Vortex Impeller

Outlet Size (Discharge)

2 inches (51 mm)

Phase

3

Voltage

230/460 V

Current

7/3.5 A

Max Liquid Temperature

104°F (40°C)

Insulation Class

N/A

Thermal Overload

Thermal Overload Protection

Circuit Breaker

N/A

Material Specifications

Shaft

N/A

Stator Housing

Stainless Steel (Motor Housing)

Mechanical Seal

Silicon Carbide Double Mechanical

Seal Housing

N/A

Diffuser

N/A

Discharge Lining

N/A

Strainer

N/A

Impeller

N/A (Recessed Vortex)

Hardware

N/A

Cable

16 ft cable

General Dimensions

Height

20.47 inches (520 mm)

Width

7.32 inches (186 mm)

Length

N/A

Weight

57 lbs (26 kg)
