Let's Get Things Flowing

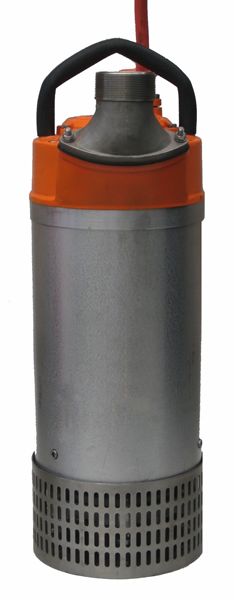

MP70 HV Mighty Pump

Dewatering pumps that can move large volumes of liquids

Pump Features

  • Dewatering Mighty Pumps™ are capable of handling High Head (HH) and High Volume (HV) dewatering jobs
  • Hardened Stainless Steel impellers
  • Anti-vibration bellows that restrict the separation of the seal faces
  • Stainless Steel cartridge-type seal with solid Silicone Carbide seal faces
  • Wear resistant stainless steel housing
  • Double O-Ring Seal for mating components around the motor
  • Circuit breaker, locked rotor and overload protection
  • Pump’s slim line design facilitates installation in tight quarters
  • Electrical overload and thermal overload protection
  • 1 year warranty. Approved by CSA, UL, UL ©
  • Options Include: Automatic controls, shielded cable and pilot cable for diode, hard coating, special coatings for variable pH water conditions, nylon discharge lining and the addition of a Zener Diode to the ground fault

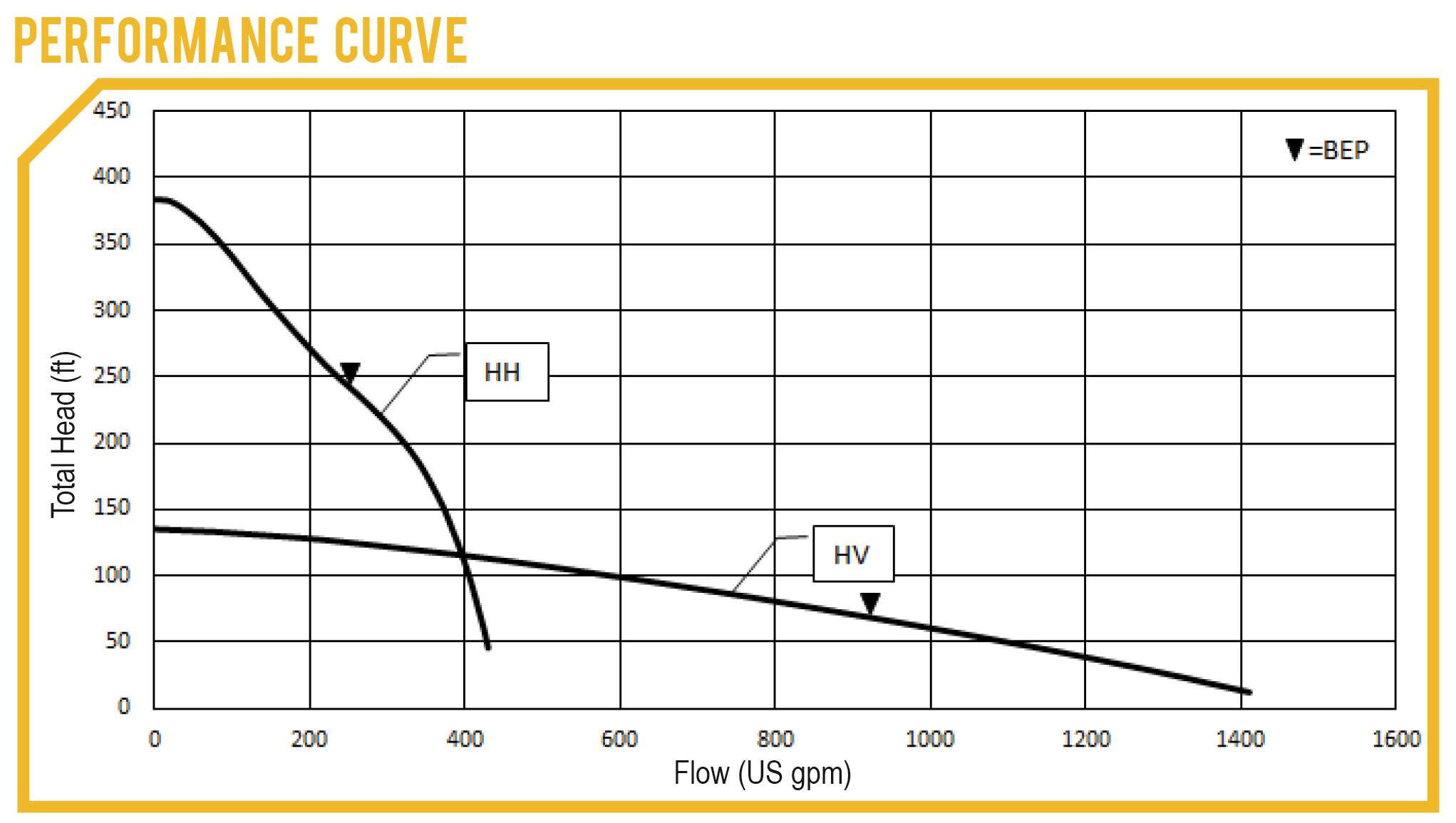

Performance

Pump Type

Electric Submersible Pump

Model

MP70 HV Mighty Pump

Maximum Flow

1,410 US gpm (5,337 L/min)

Shutoff Head

135 ft (41 m)

Solids Handling

0.35 inch (9 mm) Diameter

BEP with 15' Lift

N/A

Technical Specs

Horsepower

30.0 hp

Maximum Operating Speed

3,450 RPM

Impeller Type

Semi-Open Multi Vane

Outlet Size (Discharge)

6 inches (152 mm)

Phase

3

Voltage

460/575 V

Current

39/30 A (approx)

Max Liquid Temperature

N/A

Insulation Class

N/A

Thermal Overload

Two Thermal Switches in Stator

Circuit Breaker

Short Circuit, Locked Rotor & Overload Protection

Material Specifications

Shaft

Stainless Steel

Stator Housing

356-T6 Aluminum

Mechanical Seal

Solid Silicon Carbide Lower Seals, Stainless Springs

Seal Housing

Stainless Steel

Diffuser

Wear Resistant Nitrile Rubber (adjustable)

Discharge Lining

Polypropylene

Strainer

Stainless Steel

Impeller

Stainless Steel (17-4 PH)

Hardware

Stainless Steel

Cable

50 ft (approx)

General Dimensions

Height

42 inches (1,067 mm)

Width

16 inches (410 mm)

Length

N/A

Weight

370 lbs (168 kg)
