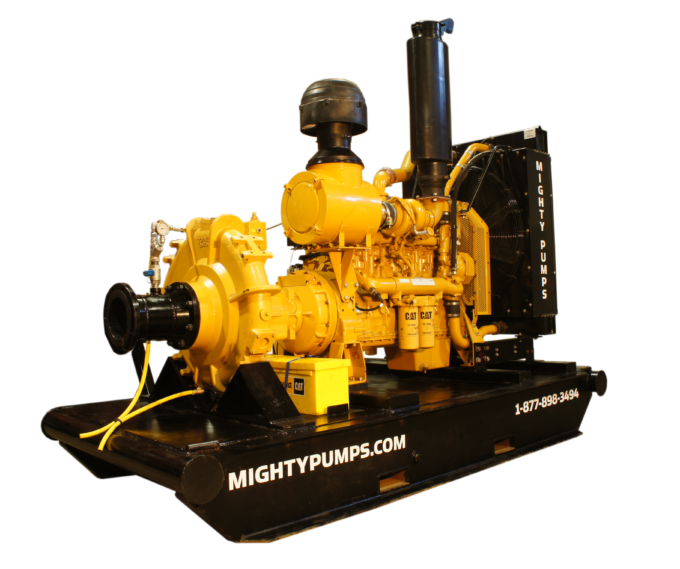

HW12 Mighty Pump

High Head Water (HW) pumps are designed for high head jobs with very few solids

Pump Features

  • High Head Water (HW) pumps are designed for high head jobs with very few solids
  • Variety of pump applications including sewage, liquids, sludge and liquids with solids up to 2.38 inches (60 mm) in diameter
  • Standard engine CAT C32-950 hp
  • Stressproof™ stainless steel shaft with innovative Cycloseal® (Tungsten Carbide vs. Silicon Carbide) that extends seal life- often triple normal mechanical seals
  • Oil bath feeds the mechanical seal with cooler oil for continuous dry running
  • Industrial strength skid built with integral fuel tank.
  • Capable of remote monitoring with live updates that include: pump’s global position, discharge pressure, engine data and maintenance log
  • Automatic Priming System sucks air and liquid at the same time. Primes and re-primes completely unattended
  • Priming system built with in-line ¼ turn isolation valve for flooded suction applications
  • At its Best Efficiency Point this pump is 75% efficient, which reduces energy costs compared to other pumps
  • Heavy duty, massive pump shafts, purposely built for industrial applications
  • Optional, automatic start/stop feature for water level control
  • Optional, easily removable protective Quiet Container
  • Warranted by MightyPumps™, Cornell and CAT/John Deere- 2 year, 2,000 hour warranty

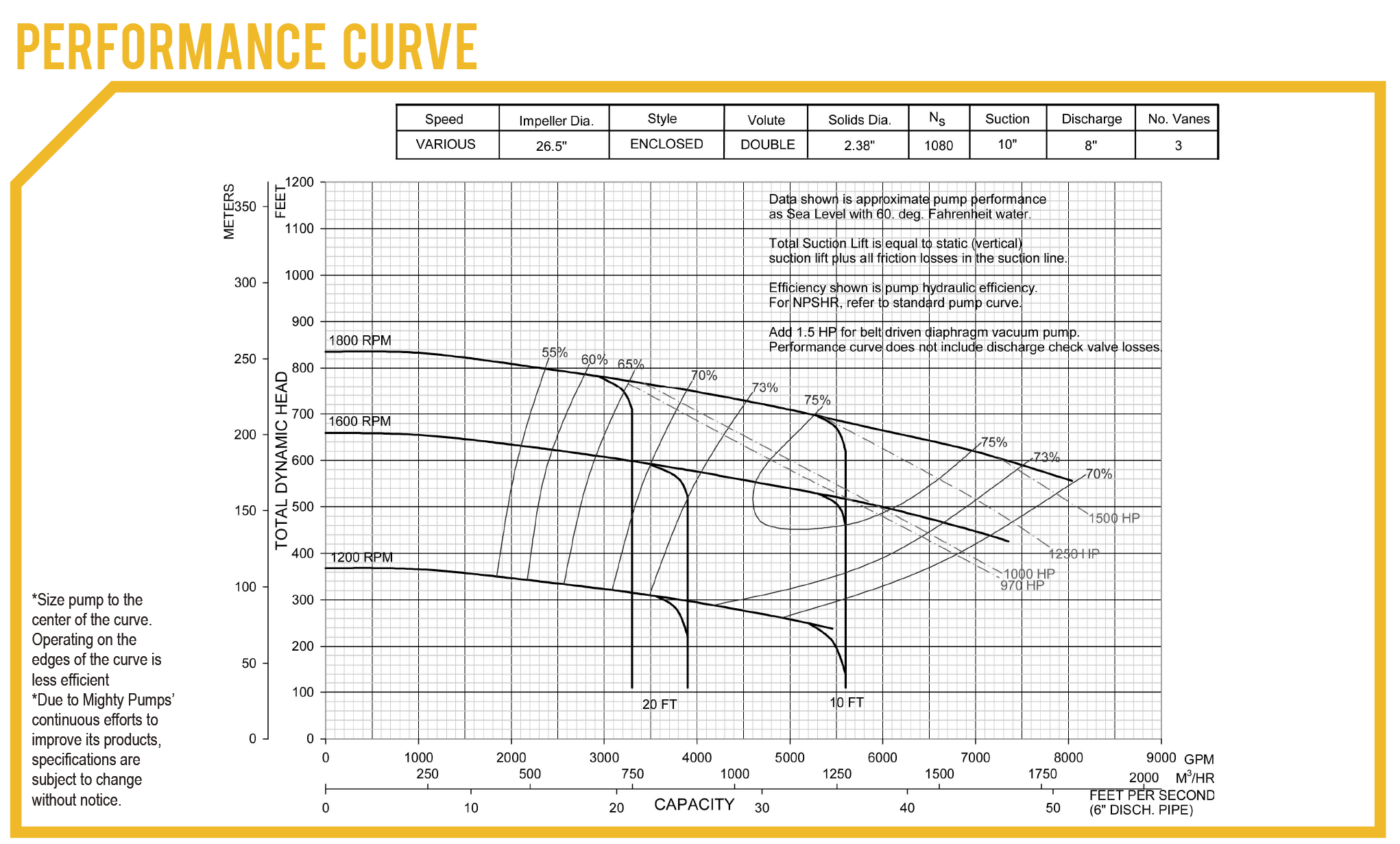

Performance

Pump Type

Jet-Prime Pump

Model

HW12 Mighty Pump

Maximum Flow

5,400 US gpm (20,441 L/min)

Shutoff Head

837 ft (255 m)

Solids Handling

2.38 inches (60 mm) Diameter

BEP with 15' Lift

4,050 US gpm @ 575 ft & 1,200 rpm

Technical Specs

Engine

CAT C32 – 950 hp Continuous

Pump End

Cornell 81026MX

Mounting Type

Industrial Skid

Fuel Tank Capacity

400 US gal (1,514 L)

Fuel Consumption

46 US gal/hr

Approximate Run Time

9 hrs

Inlet Size (Suction)

12 inches 150 lb Flange

Outlet Size (Discharge)

12 inches 150 lb Flange

Maximum Operating Speed

1,800 rpm

Max Case Pressure

350 psi (2,413 kPa)

Max Liquid Temperature

180°F (82°C)

Optional Fuel Tank Capacity

250 US gal (946 L)

Optional Fuel Tank Capacity Run Time

5.5 hrs

Material Specifications

Volute

ASTM A536-72 Ductile Iron

Wear Rings

ASTM A48 Cast Iron

Backplate

ASTM A536-72 Ductile Iron

Impeller

ASTM A48 Cast Iron

Frame

ASTM A48 Cast Iron

Trailer

N/A (Skid)

Shaft

17-4 PH Stainless Steel

Shaft Seal

Tungsten Carbide vs. Silicon Carbide

Engine Bracket

ASTM A48 Cast Iron

General Dimensions

Height

93 inches (2,362 mm)

Width

88 inches (2,235 mm)

Length

208 inches (5,283 mm)

Weight

18,250 lbs (8,278 kg)
