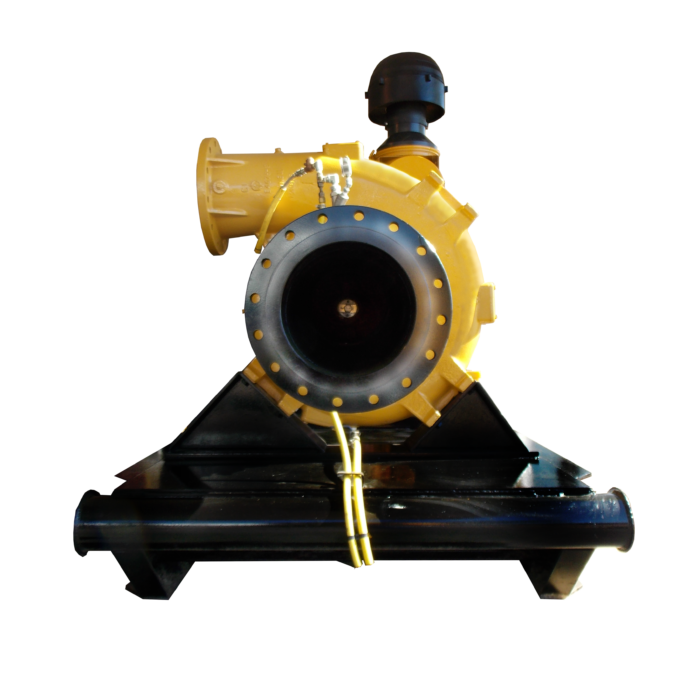

HT16 Mighty Pump

High Head Trash (HT) Pumps balance high lift and high volume capabilities

Pump Features

  • High Head Trash (HT) Pumps balance high lift and high volume capabilities
  • Variety of pump applications including sewage, liquids, sludge and liquids with solids up to 3.2 inches (81 mm) in diameter
  • Standard engine CAT C32–950 hp
  • Stressproof™ stainless steel shaft with innovative Cycloseal® (Tungsten Carbide vs. Silicon Carbide) that increases the seal life by up to three times that of a typical mechanical seal
  • Oil bath feeds the mechanical seal with cooler oil for continuous dry running
  • Steel construction skid. Also available with an industrial grade, off-road trailer mount
  • Capable of remote monitoring with live updates that include: pump’s global position, discharge pressure, engine data and maintenance log
  • Automatic Priming System sucks air and liquid at the same time. Primes and re-primes completely unattended
  • Priming system built with in-line ¼ turn isolation valve for flooded suction applications
  • At its Best Efficiency Point this pump is 82% efficient, which reduces energy costs compared to other pumps
  • Heavy duty, massive pump shafts, purposely built for industrial applications
  • Optional Water Level Control
  • Optional, easily removable protective Quiet Container
  • Warranted by Mighty Pumps, Cornell and CAT- 2 year, 2,000 hour warranty

Performance

Pump Type

Jet-Prime Pump

Model

HT16 Mighty Pump

Maximum Flow

12,875 US gpm (48,732 L/min)

Shutoff Head

410 ft (125 m)

Solids Handling

3.2 inches (81 mm) Diameter

BEP with 15' Lift

7,000 US gpm @ 335 ft & 1,200 rpm

Technical Specs

Engine

CAT C32 – 950 hp Continuous

Pump End

Cornell 12NHG28

Mounting Type

Industrial Skid

Fuel Tank Capacity

400 US gal (1,514 L)

Fuel Consumption

45.7 US gal/hr

Approximate Run Time

9 hrs

Inlet Size (Suction)

16 inches 150 lb Flange

Outlet Size (Discharge)

16 inches 150 lb Flange

Maximum Operating Speed

1,200 rpm

Max Case Pressure

200 psi (1,379 kPa)

Max Liquid Temperature

180°F (82°C)

Optional Fuel Tank Capacity

N/A

Optional Fuel Tank Capacity Run Time

N/A

Material Specifications

Volute

ASTM A536-72 Ductile Iron

Wear Rings

ASTM A48 Cast Iron

Backplate

ASTM A536-72 Ductile Iron

Impeller

ASTM A48 Cast Iron

Frame

ASTM A48 Cast Iron

Trailer

N/A (Skid)

Shaft

Stress Proof SAE 1144 Steel

Shaft Seal

Tungsten Carbide vs. Silicon Carbide

Engine Bracket

ASTM A48 Cast Iron

General Dimensions

Height

112 inches (2,845 mm)

Width

81 inches (2,057 mm)

Length

227 inches (5,766 mm)

Weight

26,602 lb (12,067 kg)
