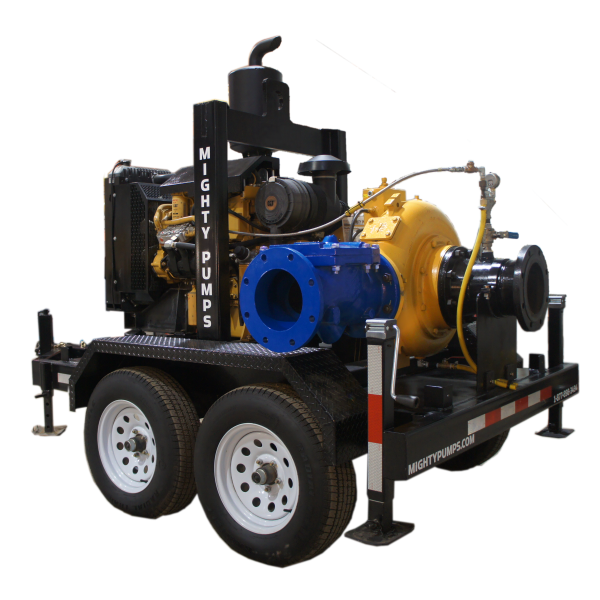

DT8 Mighty Pump

Pump Features

  • Dewatering Trash (DT) Pumps move large volumes of water
  • Variety of pump applications including sewage, liquids, sludge and liquids with solids up to 3.38 inches (86 mm) in diameter
  • Standard engine CAT C4.4 Electronic-142 hp, also available in John Deere JD6068T Electronic- 150 hp
  • Stressproof™ stainless steel shaft with innovative Cycloseal® (Tungsten Carbide vs. Silicon Carbide) that extendsseal life- often triple normal mechanical seals
  • Oil bath feeds the mechanical seal with cooler oil for continuous dry running
  • Steel construction industrial grade, off-road trailer with an internal 99 gallon fuel tank; exempt from TDG legislation. Optional highway certified industrial trailer with lights and automatic hydraulic brakes.

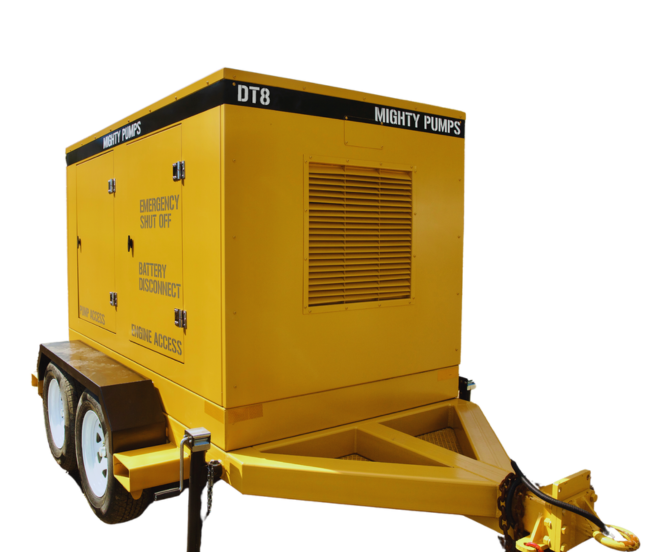

  • Protective Quiet Container is easily removable and reduces sound down to 70 dB at 28 ft away
  • Automatic priming system that sucks air and liquid at the same time. Primes and re-primes completely unattended
  • Priming system built with in-line ¼ turn isolation valve for flooded suction applications
  • Automatic start/stop feature for water level control
  • At its Best Efficiency Point this pump is 81% efficient, which reduces energy costs compared to other pumps
  • Heavy duty, massive pump shafts, purposely built for industrial applications
  • Optional remote monitoring with live updates that include: pump’s global position, engine data and maintenance log
  • Warranted by MightyPumps™, Cornell and CAT/John Deere- 2 year, 2,000 hour warranty

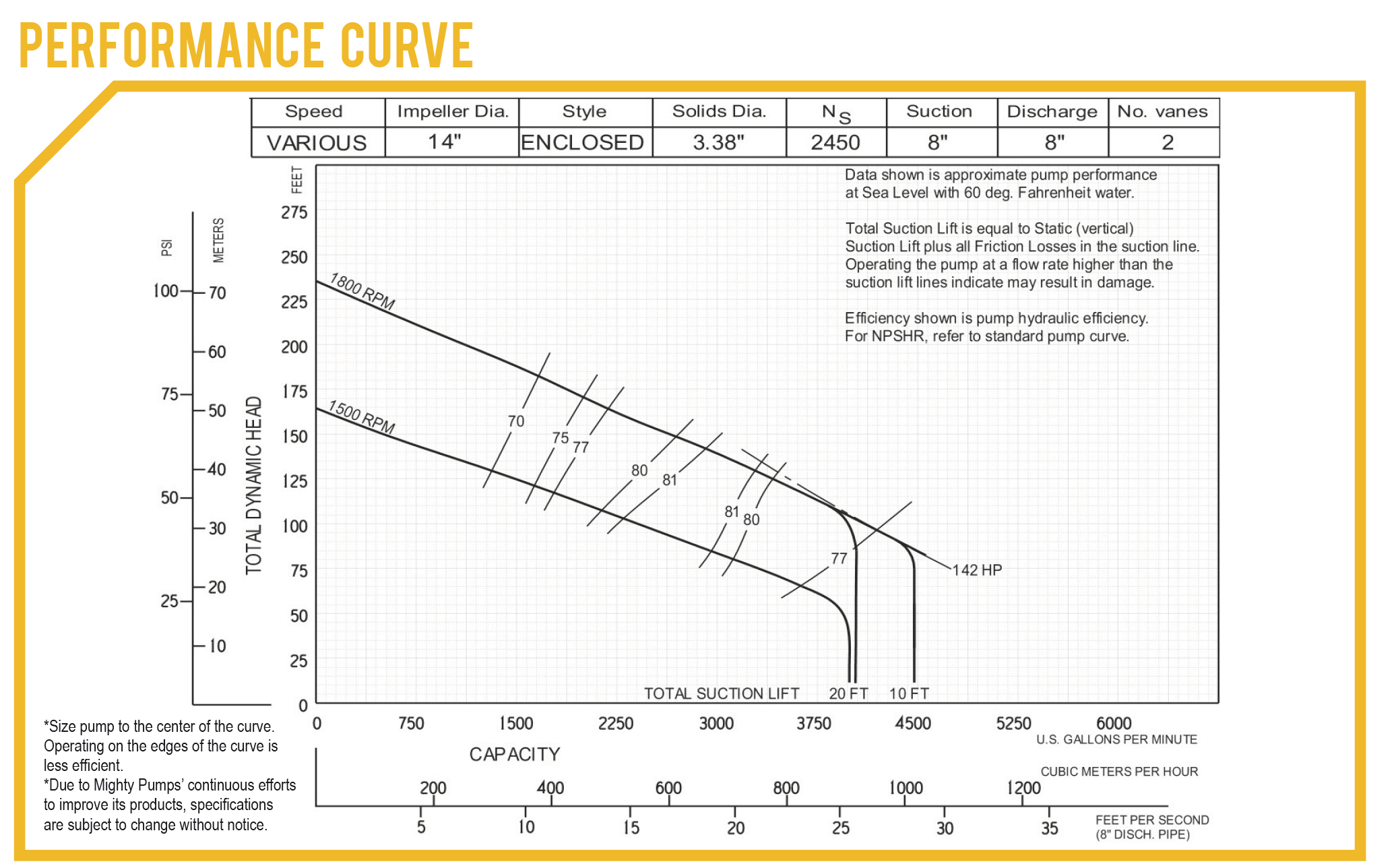

Performance

Pump Type

Jet-Prime Pump

Model

DT8 Mighty Pump

Maximum Flow

4,500 US gpm (17,034 L/min)

Shutoff Head

235 ft (72 m)

Solids Handling

3.38 inches (86 mm) Diameter

BEP with 15' Lift

3,112 US gpm @ 135 ft & 1,800 rpm

Technical Specs

Engine

CAT C4.4 Electronic – 142 hp (John Deere ~150 hp opt.)

Pump End

Cornell 8NNT

Mounting Type

Dual Axle, Off Road Trailer

Fuel Tank Capacity

99 US gal (375 L)

Fuel Consumption

6.5 US gal/hr

Approximate Run Time

15 hrs

Inlet Size (Suction)

8 inches 150 lb Flange

Outlet Size (Discharge)

8 inches 150 lb Flange

Maximum Operating Speed

1,800 rpm

Max Case Pressure

150 psi (1,034 kPa)

Max Liquid Temperature

180°F (82°C)

Optional Fuel Tank Capacity

N/A

Optional Fuel Tank Capacity Run Time

N/A

Material Specifications

Volute

ASTM A48 Cast Iron

Wear Rings

ASTM A48 Cast Iron

Backplate

ASTM A48 Cast Iron

Impeller

ASTM A48 Cast Iron

Frame

ASTM A48 Cast Iron

Trailer

CSA G40.21 350W Steel

Shaft

Stress Proof SAE 1144 Steel

Shaft Seal

Tungsten Carbide vs. Silicon Carbide

Engine Bracket

ASTM A48 Cast Iron

General Dimensions

Height

92 inches (2,337 mm)

Width

72 inches (1,829 mm)

Length

141 inches (3,581 mm)

Weight

6,309 lbs (2,862 kg)
