• Powerful
  • Reliable
  • Efficient
Schedule A Call
Let's Get Things Flowing

CP3 Mighty Pump

At its Best Efficiency Point this pump is 67% efficient, which reduces energy costs compared to other pumps

Pump Features

  • The CP Series Pumps move large volumes of water
  • Variety of pump applications including sewage, liquids, sludge and liquids with solids up to 1.5 inches (38 mm) in diameter
  • Standard engine Yanmar 3TNV70 – 22.8 hp
  • Stressproof™ stainless steel shaft with innovative Cycloseal® (Silicon Carbide vs. Silicon Carbide) that extends seallife – often triple normal mechanical seals
  • Oil bath feeds the mechanical seal with cooler oil for continuous dry running
  • Steel construction industrial grade trailer with an internal fuel tank; exempt from TDG legislation. Optional highway certified industrial trailer with lights and automatic hydraulic brakes.
  • Warranted by MightyPumps™, Cornell and CAT/Yanmar- 2 year, 2,000 hour warranty
  • Automatic priming system that sucks air and liquid at the same time. Primes and re-primes completely unattended
  • Priming system built with in-line ¼ turn isolation valve for flooded suction applications
  • Automatic start/stop feature for water level control
  • At its Best Efficiency Point this pump is 67% efficient, which reduces energy costs compared to other pumps
  • Heavy duty, massive pump shafts, purpose built for industrial applications
  • Optional remote monitoring with live updates that include: pump’s global position, engine data and maintenance log

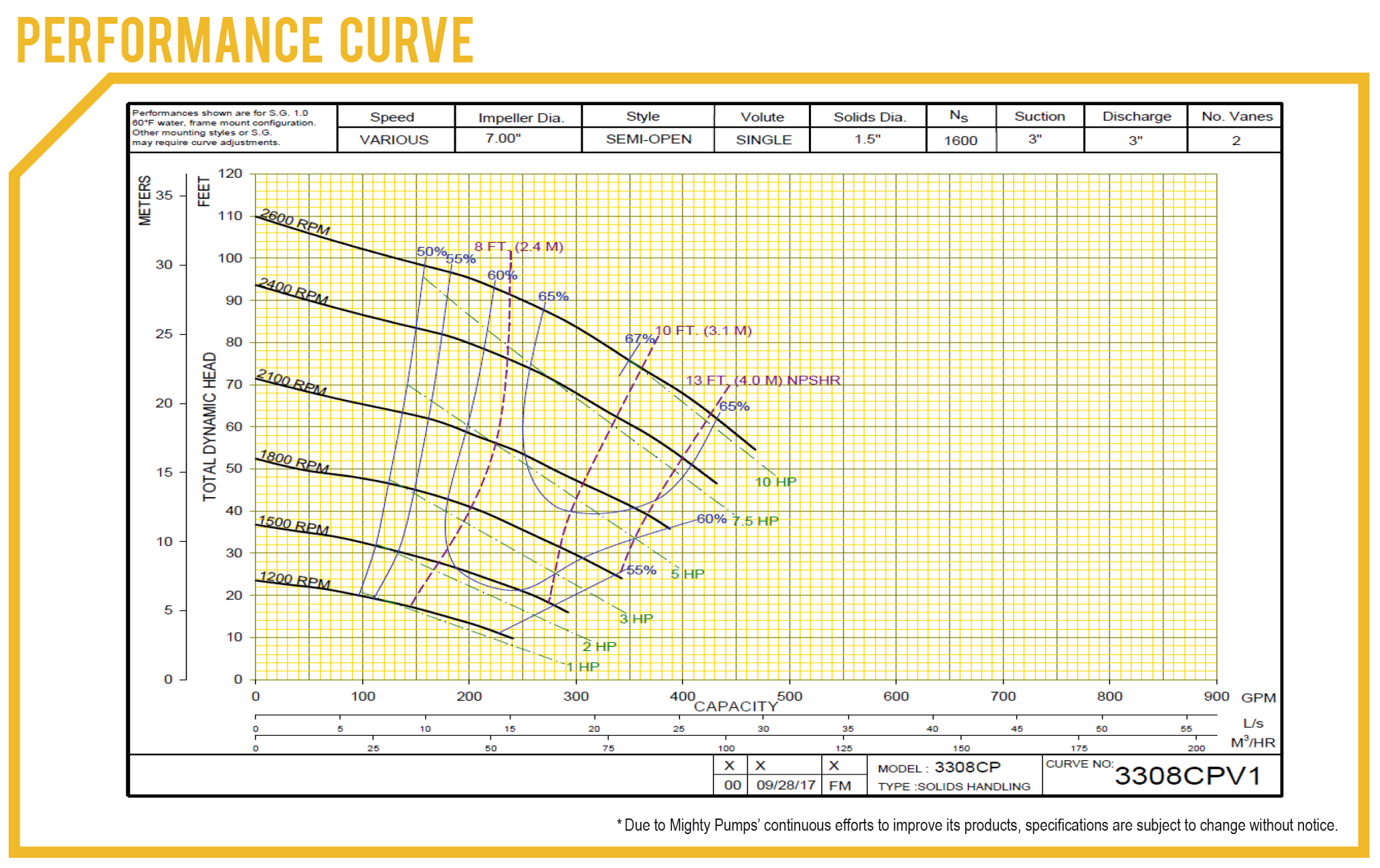

Performance

Pump Type

Jet-Prime Pump

Model

CP3 Mighty Pump

Maximum Flow

550 US gpm (2,082 L/min)

Shutoff Head

106 ft (32 m)

Solids Handling

1.5 inches (38 mm) Diameter

BEP with 15' Lift

410 US gpm @ 102 ft & 2,600 rpm

Technical Specs

Engine

Yanmar 3TNV70 – 22.8 hp

Pump End

Cornell 3308CP

Mounting Type

Single Axle, Off Road Trailer

Fuel Tank Capacity

20 US gal (75 L)

Fuel Consumption

1.06 US gal/hr

Approximate Run Time

18 hrs

Inlet Size (Suction)

3 inches 150 lb Flange

Outlet Size (Discharge)

3 inches 150 lb Flange

Maximum Operating Speed

2,600 rpm

Max Case Pressure

150 psi (1,034 kPa)

Max Liquid Temperature

180°F (82°C)

Optional Fuel Tank Capacity

N/A

Optional Fuel Tank Capacity Run Time

N/A

Material Specifications

Volute

Ductile Iron

Wear Rings

Ductile Iron

Backplate

Ductile Iron

Impeller

Ductile Iron

Frame

Ductile Iron

Trailer

CSA G40.21 350W Steel

Shaft

17-4 PH Stainless Steel

Shaft Seal

Silicon Carbide vs. Silicon Carbide

Engine Bracket

Ductile Iron

General Dimensions

Height

60 inches (1,524 mm)

Width

66 inches (1,676 mm)

Length

82 inches (2,083 mm)

Weight

3,250 lbs (1,474 kg)
